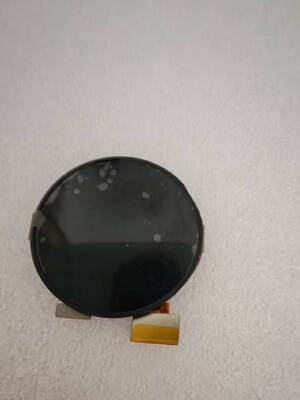

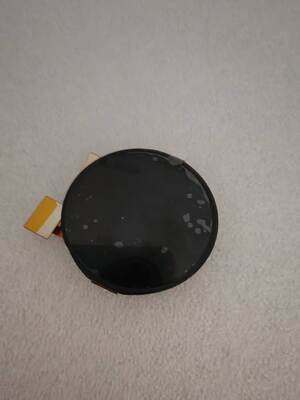

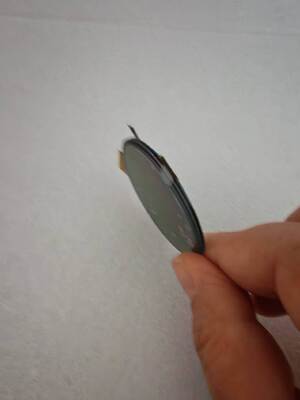

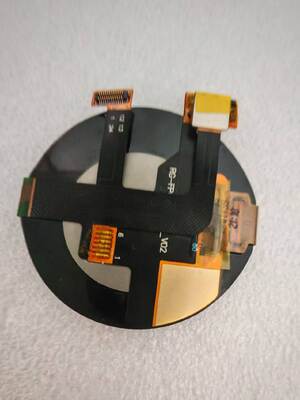

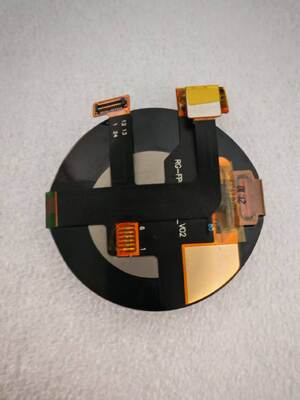

1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HuaXin |
| 証明 | ISO14001/ ISO9001/IATF16949 |
| モデル番号 | HX150ON1499 |
| ドキュメント | HX150ON1499 drawing Model (...1).pdf |
| 最小注文数量 | 500 |
| 価格 | $7.8 |
| パッケージの詳細 | Blister+Foam Box+Bubble Bag+カートン+マスターカートン内 |
| 受渡し時間 | 6週間〜8週間 |
| 支払条件 | T/T |
| 供給の能力 | 月額50k |
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ディスプレイ技術 | ラウンドAMOLED | 名前 | AMOLEDパネル |
|---|---|---|---|
| サイズ | 1.5" | 解決 | 466*466 |
| 輝度 | 800セント/日 | インタフェース | マイピ |
| Ctp Ic | CST9217 | ||
| ハイライト | 1.5 Inch AMOLED Display Module,466*466 Dots AMOLED Panel,800c/d Brightness Round AMOLED Display |
||
製品の説明
1.5 Inch Round AMOLED Display Module with Oncell Touch - 466×466 Dots and 800c/d Brightness
Key Specifications
| Part No. | HX150ON1499 |
|---|---|
| Display Size | 1.5 inch round AMOLED display |
| Outline Size (mm) | 40.70×40.94×0.77 |
| AA Size (mm) | 38.31×38.31 |
| Resolution | 466×466 |
| Interface | MIPI |
| Brightness | 800 c/d |
| View Angle | All |
| Driving IC | CO5300 |
| CTP driving IC | CST9217 |
Technical Drawing
OLED Product Knowledge
OLED Advantages
- Lighter and thinner than LCDs
- High contrast ratio
- High color saturation
- Lower power consumption
OLED Disadvantages
- AMOLED is more expensive than LCD and TFT
- Lifetime is shorter than LCD and TFT
Company Information
Huaxin Advantage
- Factory base located at inland city which has cost effective
- Most advanced new equipment which can keep quality stable
- Most processes using fully automatic equipment which has efficiency and stable quality
- Professional engineers and production leaders with 20+ years experience in LCD field
- Self design for customized product
Our Certificates
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Huaxin Technology (Enshi) Co., LTD
Hubei.Enshi
Date of foundation: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, OLED
Register capital: twenty million
Current staff: 500+
R&D accounts for 10%
QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Application
- Safety box & instrument
- Lock & smart home
- Transmitter & watch
- Watch & radio
- Collimator & navigator
AMOLED Display Characteristics
- Self-Emissive Pixels
- High Contrast Ratio
- Color Accuracy and Vibrancy
- Wide Viewing Angles
- Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
- Power Consumption: AMOLED displays consume power on a per-pixel basis, meaning that pixels displaying black or dark content consume very little power, while pixels displaying bright or white content consume more power. LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.
- Content Dependency: AMOLED displays are more power-efficient for content with dark or black areas, as individual pixels can be turned off to save power. LCD and LED displays consume a relatively constant amount of power as the backlight remains active.
- Brightness Control: AMOLED displays can dynamically adjust pixel brightness for better efficiency in low-brightness scenarios. LCD and LED displays typically have fixed backlight brightness, resulting in higher power consumption.
- Display Size: AMOLED displays tend to be more power-efficient for smaller sizes as consumption scales with pixel count. Larger LCD/LED displays may require more power-hungry backlights, reducing efficiency compared to same-size AMOLED displays.
