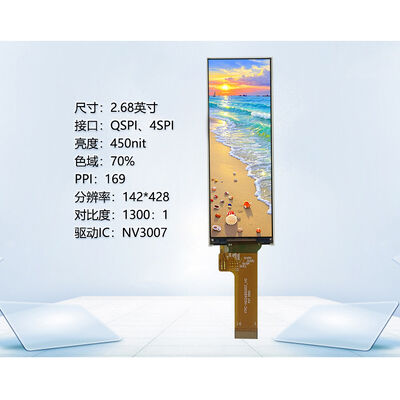

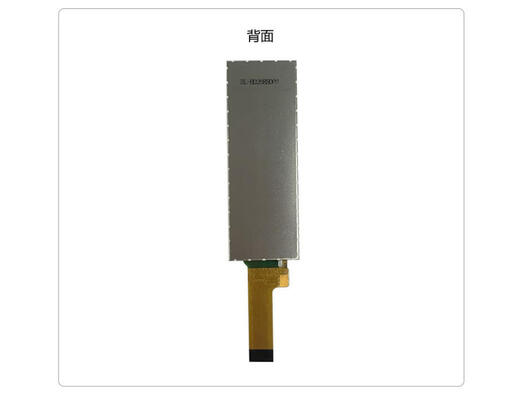

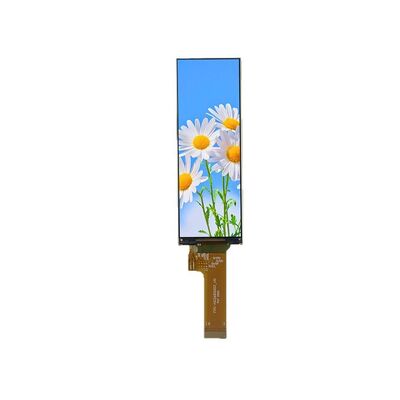

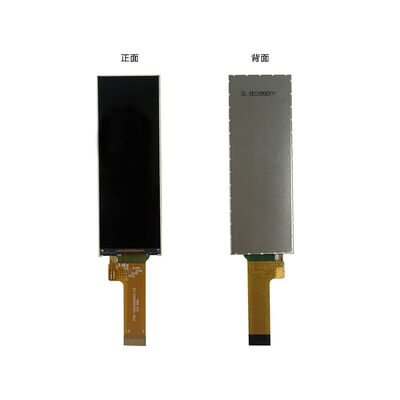

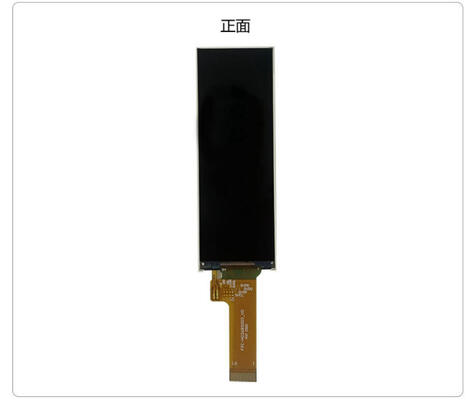

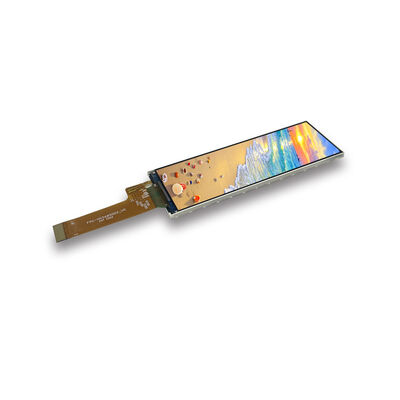

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HuaXin |
| 証明 | ISO14001/ISO9001/IATF16949 |
| モデル番号 | HX0268S003T003 |
| ドキュメント | HX0268S003T003-SPEC.pdf |
| 最小注文数量 | 1000 |
| 価格 | 交渉可能 |
| パッケージの詳細 | Blister+Foam Box+Bubble Bag+カートン+マスターカートン内 |
| 受渡し時間 | 6週間〜8週間 |
| 支払条件 | T/T |
| 供給の能力 | 月額100万 |
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ディスプレイテクノロジー | バータイプLCD | 名前 | バータイプTFT |
|---|---|---|---|
| サイズ | 2.68インチ | 解決 | 142RGB×428 |
| 輝度 | 450 | 角度を表示します | 自由視角 |
| インタフェース | QSPI | ICの運転 | NV3007 |
| タッチパネル | CTP |
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
Product Specifications
| Part No. | HX0268S003T003 |
| Display Size | 2.68 inch tft display |
| Outline Size (mm) | 24.38(H) ×69.43(V)×2.09(T) |
| AA Size (mm) | 21.28(H)×64.14(V) |
| Resolution | 142RGB x 428 |
| Interface | QSPI |
| Brightness | 450 |
| View Angle | all |
| Driving IC | NV3007 |
| Touch screen | CTP |
Technical Drawing
TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
TFT Structure
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Founded: 2009
- Location: Hubei, Enshi
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- QC team: 15% of workforce
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated production processes
- 20+ years experience in LCD field
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Applications
- Car navigation systems & printers
- Video communication & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than alternative technologies
- Size Flexibility: Available in sizes from small handheld to large panels
- Backlighting: Typically uses LED backlight systems
- Versatility: Wide range of applications across industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Moderate contrast ratio
- Backlighting increases power consumption
- Potential motion blur in fast-moving images
- Limited flexibility in physical form
- Restricted color gamut compared to some alternatives
