1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | HuaXin |
| 証明 | ISO14001/ ISO9001/IATF16949 |
| モデル番号 | HX022A-MA1 |
| ドキュメント | HX022A-MA1 SPEC.pdf |
| 最小注文数量 | 1000 |
| 価格 | 交渉可能 |
| パッケージの詳細 | Blister+Foam Box+Bubble Bag+カートン+マスターカートン内 |
| 受渡し時間 | 6週間〜8週間 |
| 支払条件 | T/T |
| 供給の能力 | 月額50k |
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ディスプレイテクノロジー | AMOLEDディスプレイ | 名前 | OLEDディスプレイ画面 |
|---|---|---|---|
| サイズ | 1.1 " | 解決 | 126X294 |
| 輝度 | 450cd/m2 | インタフェース | 4-SPI |
| ICをドライブします | SH8501A1 |
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
Product Parameters
| Part No. | HX022A-MA1 |
| Display Size | 1.1 inch AMOLED display |
| Outline Size (mm) | 12.96*30.94 |
| AA Size (mm) | 10.962*25.578 |
| Resolution | 126X294 |
| Interface | 4-SPI |
| Brightness | 450c/d |
| View Angle | all |
| Driving IC | SH8501A1 |
| Touch screen | oncell /CHSC1716 |

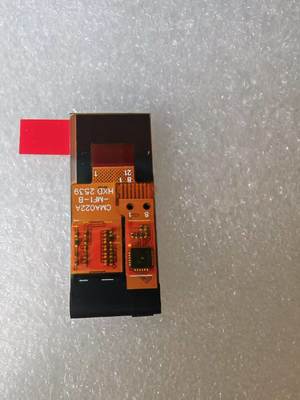

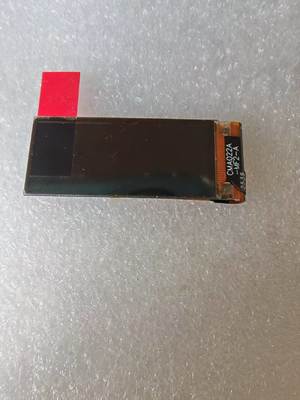

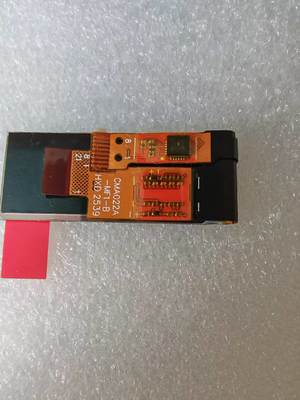

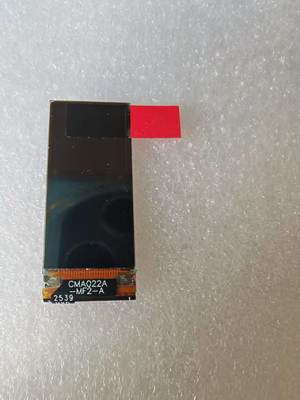

Product Images
Drawing & Pin Definition
OLED Technology Overview
OLED Advantages
- Lighter and thinner than LCD displays
- High contrast ratio
- Excellent color saturation
- Lower power consumption
OLED Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
- Cost-effective inland production base
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand Pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand Pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand Pieces/Day |
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios & navigation devices
- Collimators & medical equipment
AMOLED Display Characteristics
- Self-emissive pixels
- Superior contrast ratio
- Excellent color accuracy and vibrancy
- Wide viewing angles
- Power efficiency
- Thin and flexible design
- Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays
- Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
- Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
- Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
- Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
