11.5 Inch AMOLED Display Module with 2560*1600 Resolution and RM69380 Drive IC
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ディスプレイテクノロジー | AMOLEDタッチスクリーン | 名前 | OLEDタッチスクリーンモジュール |
|---|---|---|---|
| サイズ | 11.5" | 解決 | 2560*1600 |
| 輝度 | 350NITS | インタフェース | マイピ |
| ICをドライブします | RM69380 | ||
| ハイライト | 11.5 Inch AMOLED Display Module,2560*1600 Resolution AMOLED Display Module,RM69380 Drive IC AMOLED Display Module |
||
製品の説明
11.5 Inch AMOLED Display Module with 2560*1600 Resolution and 350cd/m² Brightness
11.5 inch large format AMOLED display module featuring 2560*1600 resolution, 350cd/m² brightness, and integrated on-cell touch technology.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | EB50QBC61.A |
| Display Size | 11.5 inch AMOLED display |
| Outline Size (mm) | 251.58*159.94 |
| AA Size (mm) | 247.68*154.8 |
| Resolution | 2560*1600 |
| Interface | MIPI |
| Brightness | 350nits |
| View Angle | All directions |
| Driving IC | RM69380 |
| Touch screen | Oncell, touch IC GT7385P |

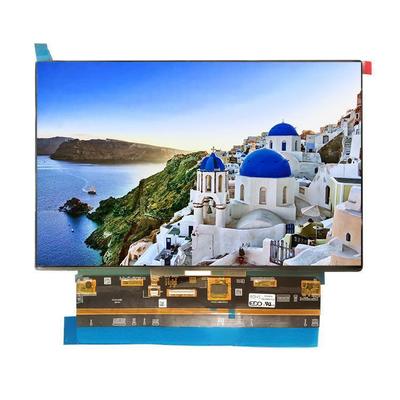

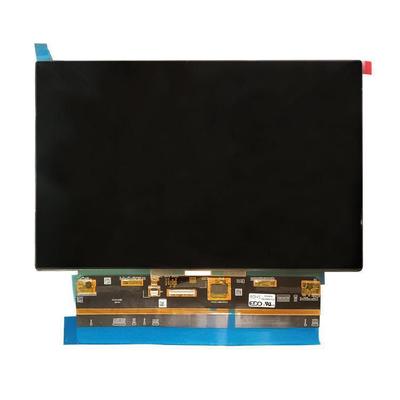

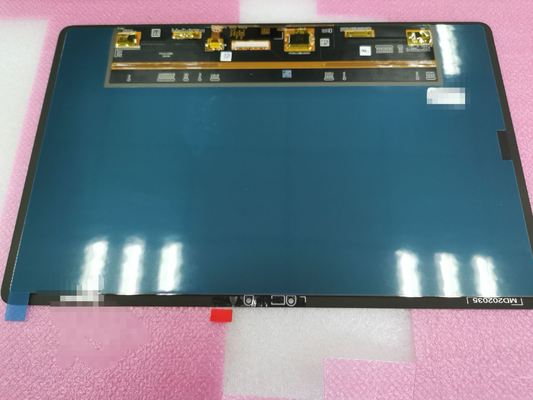

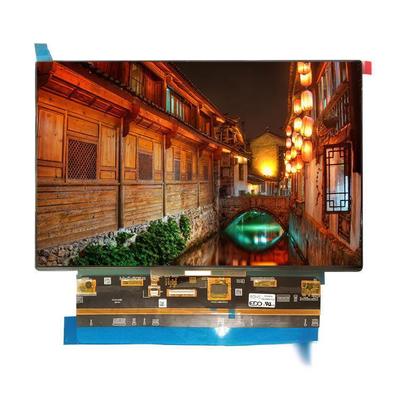

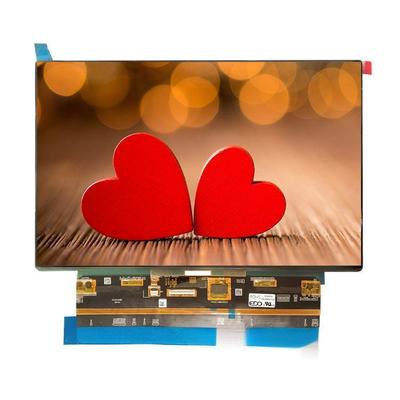

Product Images
Technical Drawing
OLED Technology Overview
OLED Advantages
- Lighter and thinner than LCD displays
- High contrast ratio
- Excellent color saturation
- Lower power consumption
OLED Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime than LCD and TFT
Manufacturer Information
Company:
Huaxin Technology (Enshi) Co., LTD
Founded:
2009 | Location: Hubei, Enshi
Scale:
Registered capital: 20 million | Employees: 500+
Expertise:
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
- Cost-effective inland production base
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity (Thousands/Day)
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 |
| LCM Production | 70 | 150 | 300 | 450 | 450 |
| Backlight Production | 100 | 200 | 300 | 500 | 500 |
| OLED Production | 10 | 20 | 30 | 40 | 50 |
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios & navigation devices
- Collimators & medical equipment
AMOLED Display Characteristics
- Self-emissive pixels
- Superior contrast ratio
- Excellent color accuracy and vibrancy
- Wide viewing angles
- Power efficiency
- Thin and flexible design
- Fast response time
Power Efficiency Comparison: AMOLED vs. LCD/LED Displays
- Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
- Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
- Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
- Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
