2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ディスプレイテクノロジー | LCDディスプレイ | 名前 | TFT LCD |
|---|---|---|---|
| サイズ | 2.79” | 表示タイプ | IPS |
| インタフェース | spi | 角度を表示します | 全て |
| 解決 | 142×428 | 輝度 | 400c/d |
| ハイライト | 2.79 Inch Bar Type TFT Display,142x428 Resolution TFT LCD,Industrial Applications IPS Display |
||
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface
High-performance industrial-grade TFT display featuring bar-type form factor, SPI interface, and excellent viewing characteristics.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | HX0279-01 |
| Display Size | 2.79 inch bar type TFT display |

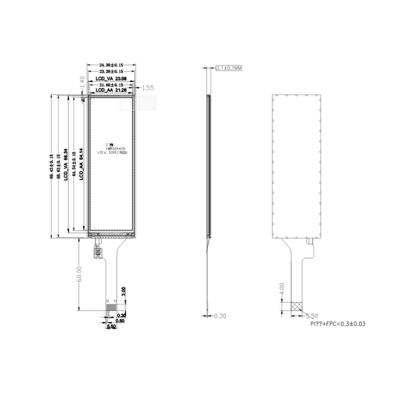

| Outline Size (mm) | 24.38*69.43*2.1 |
| AA Size (mm) | 21.28x64.14 |
| Resolution | 142x428 |
| Interface | SPI |
| Driver IC | NV3007 |
| Brightness | 400c/d |
| View Angle | ALL |

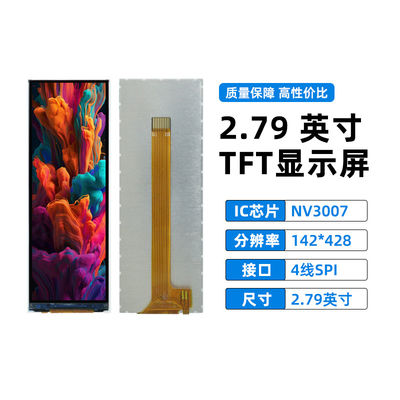

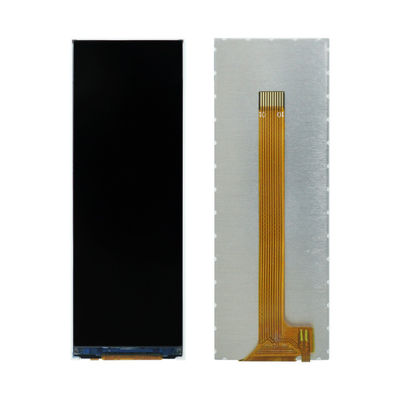

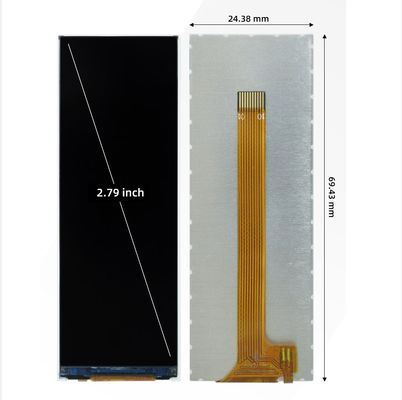

Product Images
TFT Technology Overview
Key Features
- Superior Image Quality: High resolution, sharpness, and color accuracy
- Fast Response: Quick pixel switching for smooth performance
- Wide Viewing Angles: Clear visibility from multiple positions
- Energy Efficient: Optimized power consumption
- LED Backlit: Bright, uniform illumination
Applications
- Car navigation systems & printers
- Video communication & digital signage
- Automotive interfaces & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
Technical Considerations
Potential Limitations
- Optimal viewing within specific angles
- Contrast ratio limitations in bright environments
- Backlight power requirements
- Potential motion blur in fast-moving content
- Fixed form factor (non-flexible)
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED solutions with 500+ employees and 20+ years of industry experience.
Company Advantages
- Cost-effective inland manufacturing base
- Advanced automated production equipment
- 20+ years experienced engineering team
- Custom design capabilities
- Certifications: ISO14001, ISO9001/IATF16949, SGS
Product Portfolio
- LCD: VA, TN, HTN, STN, FSTN, CSTN series
- LCM: COB, TBA, COG, TP, LED backlight series
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
